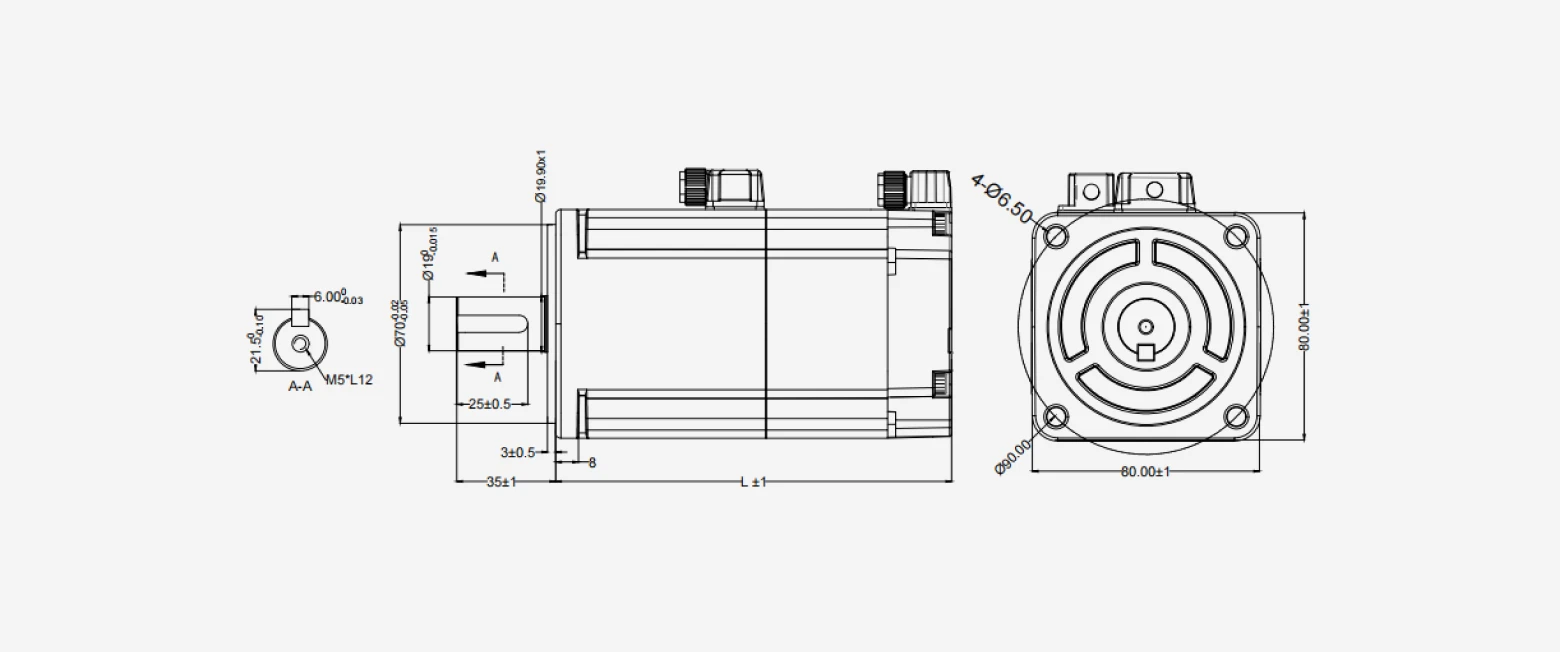

| Item | Specifications |
|---|---|
| Flange Size | 80 mm (NEMA 32) |
| Motor Type | Permanent Magnet AC Servo |
| Rated Power | 0.75 – 1.0 kW |
| Rated Torque | 2.39 – 4.5 N·m |
| Feedback | 17-bit Absolute Encoder |
| Supply Voltage | 220V AC |
| Rated Speed | 2000 – 3000 rpm |
| Insulation Class | Class F |
| Protection | IP65 |
| Ambient Temperature | -20℃ ~ +50℃ |
| Brake | Optional (power-off) |
| Cooling | Natural |
| Model | Rated Power (kW) | Rated Torque (N·m) | Peak Torque (N·m) | Rated Speed (rpm) | Rated Current (A) | Standard length (mm) | Length with brake (mm) | Insulation/Protection | Voltage |
|---|---|---|---|---|---|---|---|---|---|
| 80BSF-S07530 | 0.75 | 2.39 | 7.17 | 3000 | 4.4 | 101.5 | 139.5 | Class F / IP65 | 220V |
| 80BSF-S10030 | 1.0 | 3.2 | 9.6 | 3000 | 5.5 | 113.5 | 151.5 | Class F / IP65 | 220V |
| 80BSF-S10020 | 1.0 | 4.5 | 10.7 | 2000 | 4.4 | 113.5 | 151.5 | Class F / IP65 | 220V |
*Representative models. We can manufacture products according to customer’s requirements.

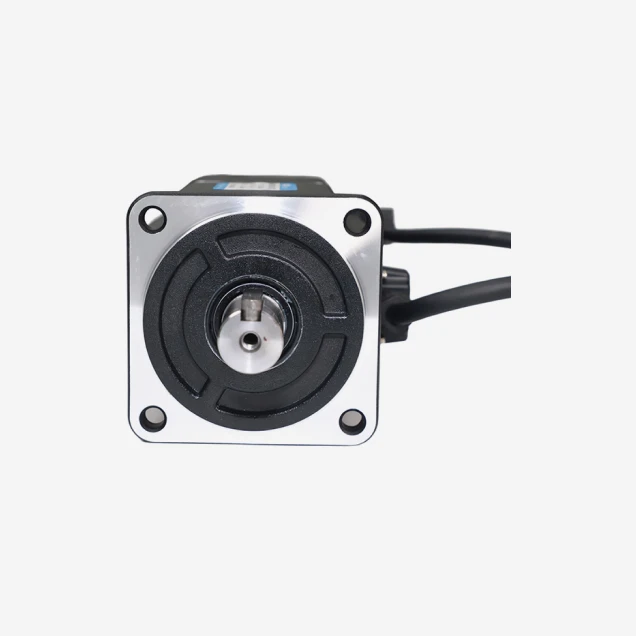

An 80mm servo motor is a mid-size permanent-magnet AC servo on an 80 mm flange, the NEMA 32 frame size. It sits a step above the 60 frame, with more torque for mid-size machines, and runs closed-loop on a 17-bit absolute encoder so the drive always knows rotor position and holds it under load. It runs on a 220V supply at up to 3000 rpm and suits handling, feed axes and general automation.
The 80 frame comes in three models: a 750 W model and two 1000 W models, with peak torque to about three times rated for acceleration. One 1000 W model runs to 3000 rpm for speed; the other runs to 2000 rpm with more torque. Rated torque and current per model are in the specification table above.
Both are 1 kW, but power is torque times speed, so at the same power you trade one for the other. The 3000 rpm model gives less torque for faster axes; the 2000 rpm model gives more torque for heavier, slower axes. Picking the right one means the motor delivers the torque your axis needs at the speed it runs. Tell us the load and speed and we will confirm which fits.
A 750 W servo is a common mid-size machine servo. It has more torque than a small 200 to 600 W servo, so it drives mid-size handling, feed axes, conveyors and packaging heads while staying compact and fast. In the 80 frame it is the entry model, with 1 kW models above it. Send your axis load and speed and we will confirm the fit.

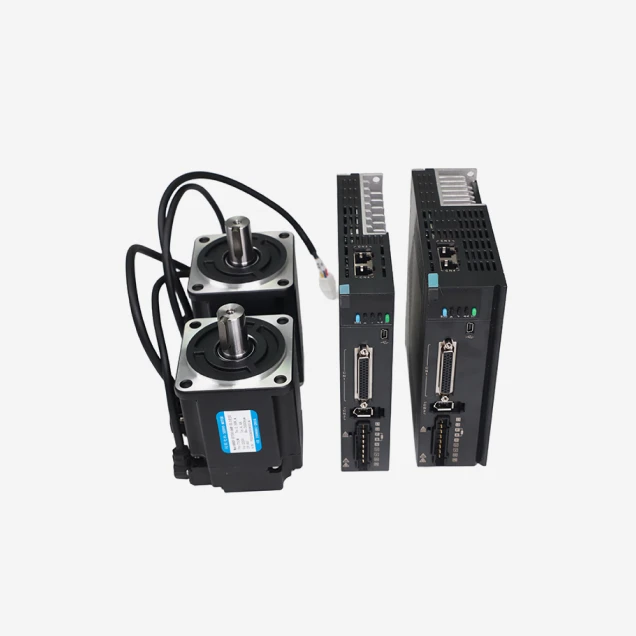

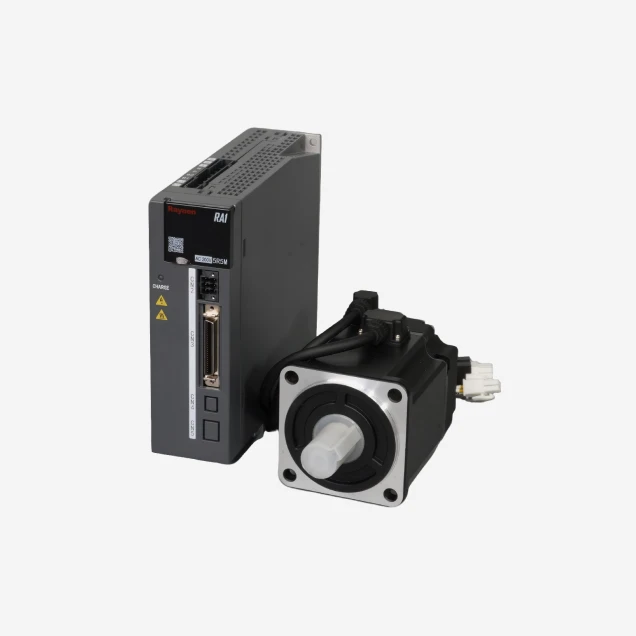

Yes. Each 80mm servo ships with a matched servo drive, sized and tuned to the motor as a tested set, so commutation, gain and inertia matching are set before delivery. The drive runs position, speed and torque modes, with pulse and direction or bus communication depending on the model. You can also pair the motor with your own drive — ask us for the data you need.
Yes to both. A power-off holding brake is available for vertical or inclined axes, and the braked version is longer — see the table for the dimension. A planetary gearbox is available to trade speed for torque on slower, higher-load axes. Specify the gear ratio when you ask for a quote.
The 80mm servo uses a 17-bit absolute encoder for closed-loop feedback. Absolute means the axis knows its position the moment power comes on, so there is no homing routine after a power cycle — useful on machines that restart often. The encoder also closes the loop continuously, so the motor holds position under a changing load.

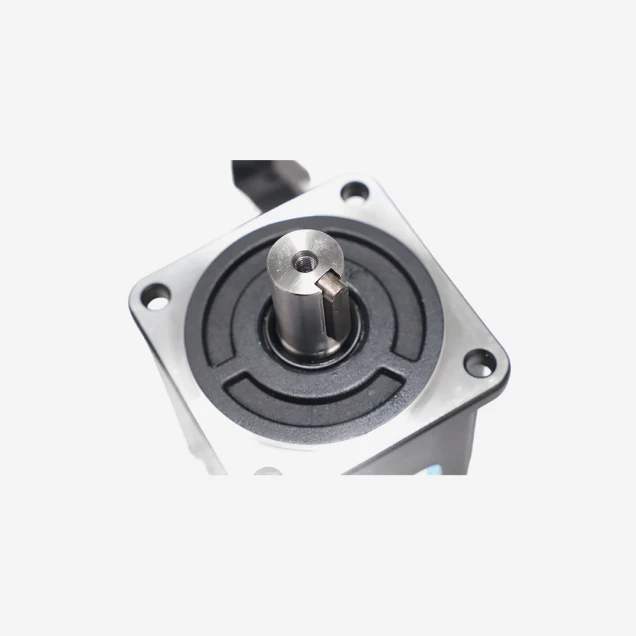

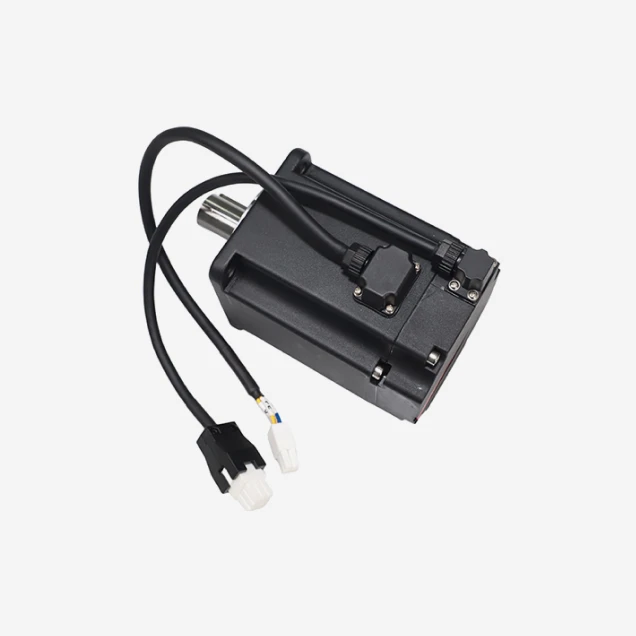

Yes. The 80mm servo is built for OEM integration, so the shaft diameter, length and keyway can be made to your drawing. We can add a brake, fit a gearbox, and change the connector and cable. Send your drawing or application and we will confirm what we can match.
The 80mm servo motor is a mid-size permanent-magnet AC servo on an 80 mm (NEMA 32) flange. It runs 0.75 to 1 kW with 2.39 to 4.5 N·m of rated torque and about three times that as peak, on a 220V supply, and turns at up to 3000 rpm. It runs closed-loop on a 17-bit absolute encoder, so the axis knows its position on power-up and holds it under load. It is the step up from the 60mm frame, sized for mid-size handling, feed axes and general automation where a small servo runs short on torque.
The 80 frame is the mid-size industrial servo — more torque than the 60 frame, still compact and fast:
The 80 frame has two 1 kW models, and the difference is a useful thing to understand. Power is torque times speed, so at the same 1 kW you can have more speed with less torque, or more torque with less speed. The S10030 turns to 3000 rpm at 3.2 N·m for speed-led axes; the S10020 turns to 2000 rpm at 4.5 N·m for torque-led axes. Same power, matched to what the axis actually needs.
| Model | Power | Speed | Rated Torque | Pick When |
|---|---|---|---|---|
| 80BSF-S07530 | 750 W | 3000 rpm | 2.39 N·m | Fast axes at 750 W |
| 80BSF-S10030 | 1 kW | 3000 rpm | 3.2 N·m | Speed-led 1 kW axes |
| 80BSF-S10020 | 1 kW | 2000 rpm | 4.5 N·m | Torque-led 1 kW axes |
If the axis runs fast, take the 3000 rpm model; if it moves heavier load slower, take the 2000 rpm model. Send the load and speed and we will confirm which 1 kW build fits, or whether the 750W is enough.
The 80mm servo suits mid-size axes that need more torque than a small servo, at speed:
Each 80mm servo ships with a matched servo drive, sized and tuned to the motor as a tested set, so commutation, gain and inertia matching are set before delivery. The drive runs position, speed and torque modes, with pulse and direction or bus communication depending on the model. For heavier axes, the 110mm servo motor is the next frame up. Common changes: shaft diameter, length and keyway to your drawing, a power-off holding brake for vertical axes, a planetary gearbox, and connector and cable to suit. As a servo motor manufacturer, we test the motor and drive together and ship the encoder built in.
